Professional Column And Boom Welding Manipulators / Welding Center For Pipe
1. Summary
Welding manipulator series is composed of auto welding mechanical equipment. It can use with welding rotator, widely applied to industries such as boiler, pressure vessel, petroleum, chemical industry and mechanism.the characters of machine and main dimension is designed according to auto welding process, its just the right equipment to improve welding quality and realize welding automation.
2. Description
Welding manipulator is working together with roller frame, positioned and etc. To weld the work piece inside and outside circular seam, corner seam, outside and inside longitudinal seam. According to customer specific need, various structures, welders, and assistant devices like tracking,sway,monitor, flux recovery and transmission are optional for users. Besides, we can also design and manufacture the exact type suited for users too.
● Structure: Fixed type, fixed and rotary (manual) type, mobile and rotary type.
● Function: The cross arm effectively stretch and lift. The welding head can adjust up and down, left and right. Standing column turns, vehicle moves.
● The cross arm operation accuracy: ≤ 1mm/1000m.
● Welder optional: Automatic SAW, CO2 MAG/MIG, TIG welder.
● Optional function: Flux recovery and transmission machine, video monitor, welding seam sway, automatic tracking, arc length control, platform for worker.
3. Technical parameters
|
Model |
WM1010 |
WM2020 |
WM3030 |
WM4040 |
WM5050 |
WM6060 |
WM7070 |
WM8080 |
|
Effective vertical lifting stroke of boom (mm) |
1000 |
2000 |
3000 |
4000 |
5000 |
6000 |
7000 |
8000 |
|
Effective horizontal retracting stroke of boom (mm) |
1000 |
2000 |
3000 |
4000 |
5000 |
6000 |
7000 |
8000 |
|
Boom lifting speed (mm/min) |
420 |
1000 |
1400 |
|||||
|
Boom retracting speed (mm/min) |
120-1200 |
|||||||
|
Column rotation angle(°) |
Stationary or ±180 rotation |
|||||||
|
Column rotation way |
Stationary or Manual or Electric (0.1rpm) |
|||||||
|
Trolley traveling way |
Stationary or Manual or Electric (1000mm/min) |
|||||||
|

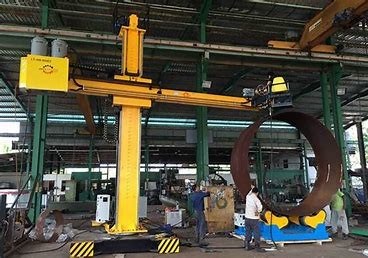

WM3030 series welding manipulator/ welding column & boom which is designed for pipe or tank welding.
If you want to know the further information please let me know. |
