Horizontal C Z Purlin Roll Forming Machine for Pre Engineering Buildings

Product Details

Place of Origin: China

Brand Name: Friendship Machinery

Certification: CE, ISO

Model Number: FSM Series

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD53,000 (normal size)

Packaging Details: Standard package

Delivery Time: 30 working days after down payment

Supply Ability: 6 sets per month

Get Best Price
Highlight:

c purlin roll forming machine

,

corrugated roll forming machine

Horizontal C Z Purlin Roll Forming Machine for Pre Engineering Buildings



Horizontal C Z Purlin Roll Forming Machine for Pre Engineering Buildings





1. product Description



● Purlin is a horizontal structure that is used in a roof to support the loads from the roof deck or sheathing.

There are C purlin and Z purlin. They are used in modern Pre Engineering Building to reduce weight of structure and they give good strength to structure.



● C Purline Roll Forming Machine CZ Purlin Roll Form Machine for Pre Engineering Buildings



● Those purlins are made by roll forming machines, we are the professional manufacturer of cold roll forming machines. Below are the specifications of C Purline Roll Forming Machine CZ Purlin Roll Form Machine for Pre Engineering Buildings





2. Technical Specifications



1. Profile

● effective width: 80-300mm

● material thickness: 1.5-3.0mm

● profiles as attached below

2. Process flow

● Decoiling - feeding- leveling - forming - measuring - punching - cutting - production

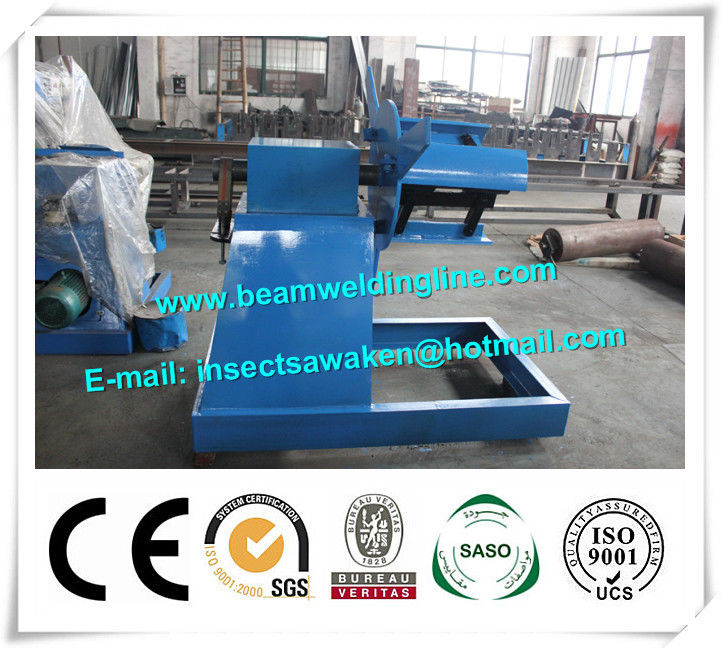

3. Decoiler

● coil inner diameter: 450-700mm

● maximum coil width: 600mm

● carrying capacity: 1500kg

● hydraulic power: 1.5kw

● oil pump inner diameter: 120mm

● pressure: 10Mpa

4. Forming device

● shaft material: 45# steel, outer diameter 80mm

 ● roller material: 15GCR bearing steel treated HRC 58-60°

● transport: by chain

● forming speed: 5-10m/min

● motor: 15kw

● dimension: 10.5*1.7*1.4m

● weight: 4.5tons

5. Cutting device

● material: blade, puncher and mold material: Cr12 steel with quenched treated 60-62

● cutting system: automatic hydraulic cutting, stop and then cut

6.Controlling device

● screen: 5.7inch Taida touching screen from Taiwan

● PLC: Taida DVP14ES from Taiwan

● coder: ENC-1-1-1T-24 from South Korea

7. Hydraulic

● advanced hydraulic system from Taiwan

● power: 15kw

8. Spare parts

● easy damaged parts: conk 2 pcs, fuse-link 4 pcs

● rubber mat 1 pcs

● bolt spanner 1 pcs
