Product Details
Place of Origin: China
Brand Name: Friendship Machinery
Certification: CE, ISO
Model Number: GS
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Packaging Details: Standard package
Delivery Time: 30 working days after down payment
Strip Mmulty Head CNC Flame Cutting Machine H Beam Production Line
1. Technical parameter
|
No. |
Item |
Specification |
|
1 |
Cross beam length (X axis) |
4000mm |
|
2 |
Longitudinal rail length (Y axis) |
10000m (Rail can be lengthened) |
|
3 |
Straight cutting width (X axis) |
80-2300mm (Can be lengthened) |
|
4 |
Cutting length (Y axis) |
8000mm (Rail can be lengthened) |
|
5 |
Cutting mode |
Flame |
|
6 |
Drive mode |
Dual |
|
7 |
Drive method |
Rack and pinion drive for X and Y axes |
|
8 |
Flame cutting thickness |
6-100mm (single head) |
|
9 |
Moving precision |
0.01mm per step |
|
10 |
Power source (option) |
220V 50Hz 500-1000W |
|
11 |
Installing capacity |
1.5KW |
|
12 |
Transmission |
Rack pinion drive |
|
13 |
Cutting gas |
Pressed air, Oxygen, N2 |
|
14 |
Horizontal cutting torch |
1 torch |
|
15 |
Longitudinal cutting torch |
9 torches (according to user's demand) |
|
16 |
Marking tool |
Yes |
|
17 |
Electric control assembly |
Electric cabinet |
2. Features
This is an CNC multi-head flame straight/ oxy/ gas cutting machine. This cutter adopts unilateral drive and lineal guide.
● Unilateral drive ,stable performance.
● Cross beam adopts optical axis linear guide to assure cutting accuracy.
● Can configurate multiple gas and auto torch height control system.
● Steel beam, rail guides, very economical.
3. Application

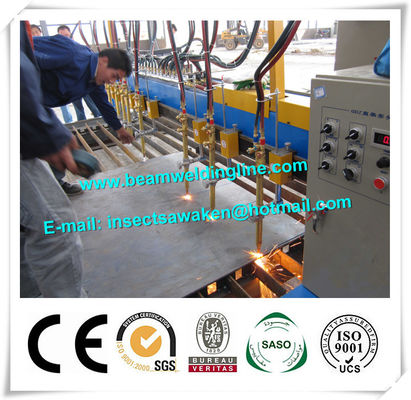

This machine as picture can configurates strips cutting unit, more useful. It can cut mild steel (flame cutting) and high carbon steel, stainless steel, aluminum, copper and other non-ferrous metal (plasma cutting), etc, be widely applied in industries such as machinery, automobile, shipbuilding, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc.
Metal processing industry: metal cutting service, stainless steel cutting service, carbon steel cutting service, CNC plasma cutting service, CNC flame cutting service ,ect.
