Durable Box Beam Production Line Fit Double Head Submerged Arc Welding Machine

Product Details

Place of Origin: China

Brand Name: Friendship Machinery

Certification: CE, ISO

Model Number: LF Series

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Packaging Details: Standard package

Delivery Time: 30 working days after down payment

Get Best Price
Highlight:

metal band saw machine

,

welded h beam line

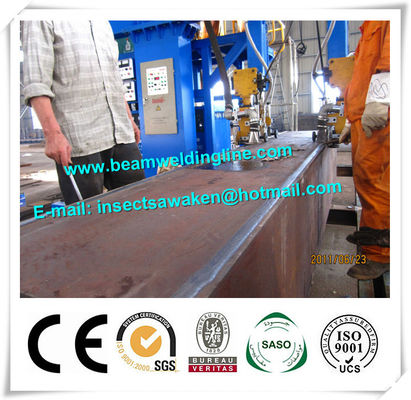

Durable Box Beam Production Line Fit Double Head Submerged Arc Welding Machine

Automatic Box Beam Production Line For Double Head Submerged Arc Welding Machine



1. Structure principle



        Cantilever submerged arc welding machine and cantilever back welding machine have the same structure: moving cart, stand column, transverse boom, welding arm, seam tracking device, wire feeding system, and electric control box. Their only difference is the configuration of welding power.

        Moving cart is composed of one base, four moving wheel, and 2pcs of wheel axles, 2 sets of motors. 2 sets of motors drive four wheel axles through the gear. It composes 4 wheel driving systems, in order to make it stable and reliable operation.

        Box-beam cantilever welding machine has two sets of welding arms. It can weld two seams at the same time. On the one hand, it moves horizontally on beam’s guiding rail, on the other hand, it also moves vertically on tool carriage’s guiding wheels.

        Seam tracking device is fixed under the welding arm. It can automatically track the welding seam to make the distance between welding torch and welding seam suitable. This device uses pneumatic tracking on horizontal direction, and automatic tracking by gravity on vertical direction.





2. Technical parameter



● Work-piece size: 300-1200 mm

● Welding speed: 0.15-1.5 m/min

● Returning speed: 4.5 m/min

● Cart gauge: 1400 mm

● Main motor power: 1.4 Kw

● Pneumatic pressure: 0.5-0.7 MPa





3. Range of supply



● Cart assembly: moving cart, motor reducer, stand column, and beam.

● Welding arm and tool carriage: welding arm, tool carriage, and motor reducer.

● weld tracker: arc guiding frame, arc guiding wheel, and air cylinder.

● Electric control system: electric control box, operating box, and AC frequency converters.

● Pipe and cable system: control cable, air supply pipe, and wire sliding frame.

● Welding system: single arc single wire: ZX5-1000 submerged arc welding power, control box, and control cable. Two sets for each, double arc double wire: Lincoln DC-1000 and AC-1200×2 submerged arc welding power, control box, control cable. Two sets for each.





4. Technical documents



● Operation manual for whole machine (including electrical diagrams, and foundation drawing)

● Certification for whole machine

● Operation manual for frequency converters

● Operation manual for welding machine
