Europ Standard Conventional Welding Rotator / 600 Tons Pipe Rollers For Welding

China Europ Standard Conventional Welding Rotator / 600 Tons Pipe Rollers For Welding supplier
Europ Standard Conventional Welding Rotator / 600 Tons Pipe Rollers For Welding supplier Europ Standard Conventional Welding Rotator / 600 Tons Pipe Rollers For Welding supplier Europ Standard Conventional Welding Rotator / 600 Tons Pipe Rollers For Welding supplier Europ Standard Conventional Welding Rotator / 600 Tons Pipe Rollers For Welding supplier

Large Image :  Europ Standard Conventional Welding Rotator / 600 Tons Pipe Rollers For Welding

Product Details:

Place of Origin: China
Brand Name: Friendship Machinery
Certification: CE, ISO
Model Number: WR Series

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Standard package
Delivery Time: 30 working days after down payment
Supply Ability: 30 sets per month
Contact Now
Detailed Product Description



Europ Standard Conventional Welding Rotator / 600 Tons Pipe Rollers For Welding





1. Main technical parameter



Item

Content

Model

HGK600

Load capacity

600t

Vessel diameter

Φ1500-8000mm

Diameter and width of wheel

Φ800×360mm

Speed of welding rotator linear

6-60m/h

Motor power

2×7.5kw



2. Main configuration list


No.

Item

Content

Brand

1

Motor power

7.5kw

Domestic motor

2

Own made reducer

Input speed

1450

Industrial standard

4#reducer

Total velocity ratio

1862

Input gear z, m

m=6, z=13

Output gear z, m

m=12, z=47

Gear material and

heat treatment

40Cr

Tempering HB215-255

Quench HRC45-50

3

Diameter and width of

wheel (cast steel)

Φ800*360



4

Welding rotator material

and heat treatment

ZG50Mn2, surface

hardening HRC45-55



5

Welding rotator bearing

self-aligning welding

rotator bearings

Model

22248

ZWZ

Standard

240/400/128

6

Frequency converter

15kw

TAIAN



3. Equipment composition

● HGK series welding rotator is composed of power welding rotator, idler welding rotator and electronic control system.
● The welding rotator is adjusted by manual lead screw, to ensure wrap angle of welding rotator to cylinder is within 45°- 110°, positioning step is designed between welding rotator seat and base.

● Positioning baffle is installed on both sides of welding rotator seat.

● The base is used welding assembly, and solder height is not less than 70% of the plate thickness.

● The two welding rotators of power welding rotator are used dual drive, and they are moved by two motors. The transmission chain: motor → three → stage gear reducer → directly drive welding rotator.

● Three-stage gear reducer is standard product. Transmission parts of reducer are made by high quality steel 40Gr, and quenching hardness of tooth surface is HRC45-50.

● AC frequency converter is used speed control of DC motor with constant torque. The signal is controlled by analog quantity, and the speed is showed by digital display table with high precision.

● Electric control system is equipped with SIEMENS or ABB’s low-voltage.

● The system has linkage interface for welding manipulator and welding system to realize the concentrated control.

● Electric control system is composed of electric control box and remote control box. Electric control box are equipped with power indicator and power master switch, and remote control box are equipped with buttons of starting, positive and negative going motion, speed regulation and abrupt stop and digital display of speed.

● The length of remote control box’s line is 10 meter.





4. Supply scope

● Power welding rotator: 1 set
● Idler welding rotator: 1 set
● Control system: 1 set
● Technical documents: 1 set
(including operating instruction manual, schematic circuit diagram, program graph, purchased part instruction, test report and certification of quality)





Europ Standard Conventional Welding Rotator / 600 Tons Pipe Rollers For Welding

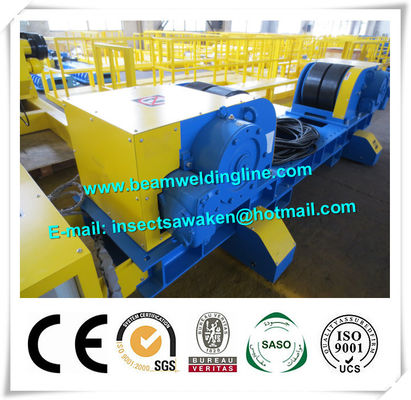

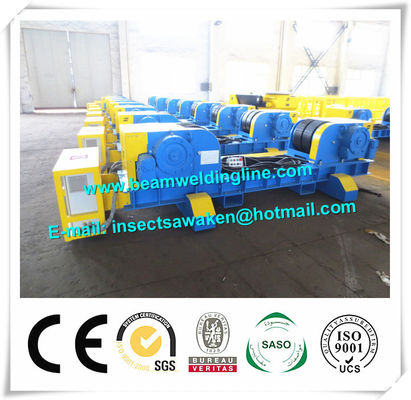

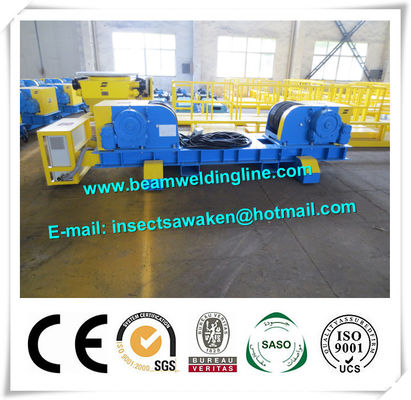

Conventional welding rotator



We could provide OEM serive to customer, and this kind of rotator is almost with ESAB series which is exported to Europ



15m cable and remote panel








Electric control box, easy to operate, PU or metal roller depends on you

If you want to see it in working please search Luk Mankai on Youtube

Europ Standard Conventional Welding Rotator / 600 Tons Pipe Rollers For Welding
