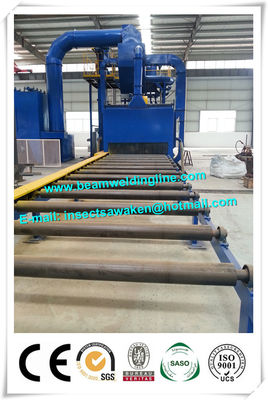

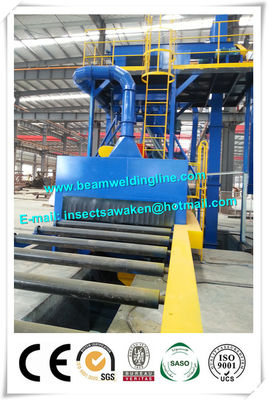

Roller Conveyor Steel Plate Shot Blasting Machine For Removing Rust

Roller Conveyor Steel Plate Shot Blasting Machine For Removing Rust

Roller Conveyor Steel Plate Shot Blasting Machine For Removing Rust
Roller Conveyor Steel Plate Shot Blasting Machine For Removing Rust Roller Conveyor Steel Plate Shot Blasting Machine For Removing Rust Roller Conveyor Steel Plate Shot Blasting Machine For Removing Rust Roller Conveyor Steel Plate Shot Blasting Machine For Removing Rust

Large Image :  Roller Conveyor Steel Plate Shot Blasting Machine For Removing Rust Get Best Price

Product Details:

Place of Origin: China
Brand Name: Friendship Machinery
Certification: CE, ISO
Model Number: HP Series

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Standard package
Delivery Time: 30 working days after down payment
Detailed Product Description
High Light:

Sand Blasting Equipment

,

H Beam Shot Blasting Machine



Roller Conveyor Steel Plate Shot Blasting Machine For Removing Rust





1. Technical parameter



 Model

HP698

HP6910

HP6912

Entrance Dimension

800*1600mm

1000*1800mm

1200*2000mm

Turbines

8

8

8

Turbine Power

7.5KW

11KW

15KW

Conveying Speed

0.5-4m/min

0.5-4m/min

0.5-4m/min

Blasting Speed

0.5-1.5m/min

0.5-1.5m/min

0.5-51.m/min

Surface Cleaning Grade

SA 2.5

SA 2.5

SA 2.5

Conveyor Loading Capacity

1,500Kg

2,000Kg

2,000Kg

Dust Collector

Filter Cartridge

Filter Cartridge

Filter Cartridge





































2. Introduction


        Steel plate shot blasting machine is a kind of multi-functional steel plate pre-treatment line, it is used for cleaning up the welded structure parts, H steel, beam steel, steel plate and so on. Blasting wheel is arranged in the form of multi-angle, choose the efficient blasting wheel, and blasting wheel throws out the high-speed and thick projectiles beam, and hit the all parts of original state steel surface,and go on stereo comprehensive clean-up, make the steel all surface fall off the rust, oxide skin, welding slag, and other dirt quickly, get the smooth surface with certain roughness, improve the adhesion force between steel and paint film, and also enhance the fatigue strength and corrosion resistance of steel, improved the inner quality of steel, prolong service life.



3. Working priceple


        In the process of cleaning, the adjustable speed conveyor roller is controlled by the electric, conveyor roller will transports the steel plate to the throwing area of cleaning room, it is hit and friction by the strong intensive projectile from different coordinate orientation, so that the oxide skin, rust and dirt on the rapidly falling, get some roughness and smooth steel surface, on both sides of the exits and entrances of outdoor, roller load and unload the work-pieces.


        Projectiles falled above the steel and dust and rust is purged by the venting device, scattered down the pill dust mixture is transported by screw conveyor into the chamber funnel, vertical and horizontal screw conveyor brings together below the elevator, then rise to separate on the upper part, purity projectile after separation drops in the separator hopper for recycling shot blasting. The dust produced during the shot blast cleaning is sent to the dust removal system by the exhaust pipe, treated air is discharge to atmosphere, the granular dust is collected.



4. Where to use

● All kinds of steel plates
● All kinds o sheet
● All kinds of frame
● Beam steel (section steel)




5. Construction


        Main parts: cleaning room, transport roller (including inside room and loading and unloading), blasting wheel, projectiles circulatory system (elevator, separator, conveyor, projectiles recycling agent, supplying projectiles duct), dust collecting system, control system.





Roller Conveyor Steel Plate Shot Blasting Machine For Removing Rust 0
