Product Details
Place of Origin: CHINA
Brand Name: Friendship Machinery
Certification: CE, ISO
Model Number: FSM-WP Series
Payment & Shipping Terms
Minimum Order Quantity: 1
Packaging Details: Steel framework and wire mesh
Supply Ability: 30 sets per month

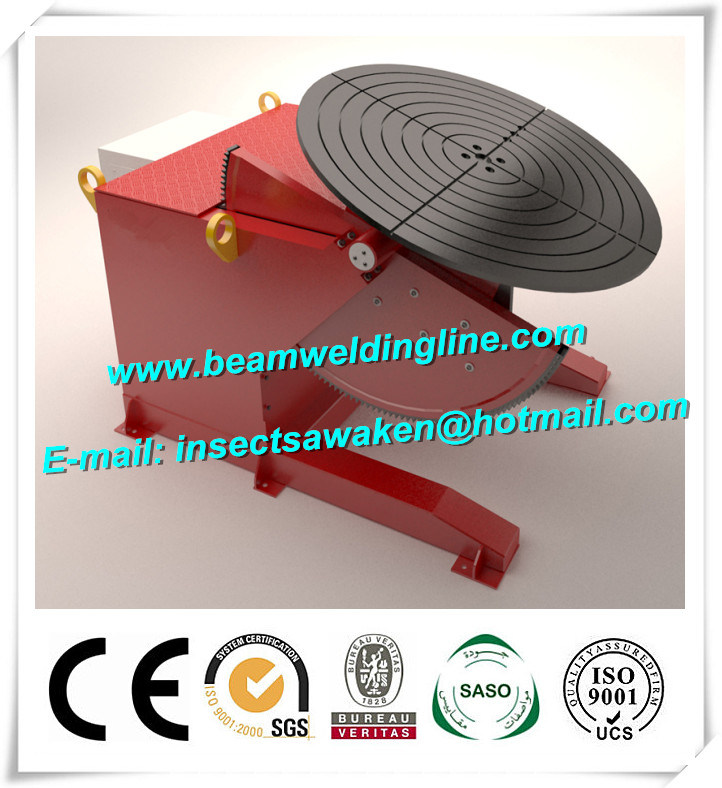

Bench Top Pipe Welding Positioner , Tilt And Rotate Positioner Welding Turntable
1. Technical parameter
● Model: FSM-WP-5
● Table diameter 1500mm
● Pendant control: 24VAC circuit, push button with 6m cable
● Input voltage: 380-415V/3phase/50-60Hz (specify voltage requirement when ordering)
● Rotation capacity: 5tons at 300mm centre of gravity
● Rotation speed: 0.08-0.8 rpm
● Tilting capacity: 5tons at 300mm eccentric loading
● Tilt range: 0 to 135 Degrees
● Tilt speed: 135 degrees in 113 seconds
● Rotation drive motor: 3KW
● Tilt drive control: 3 KW
● Estimate weight: 3100kg
2. Main features
● Solid state D.C. infinitely variable speed table rotation
● Heavy duty fully enclosed worm gear rotation drive
● On/off electric foot control
● 500 amp welding ground at 50% duty cycle
● 120 volt AC 50/60 Hz input power
● Machined table with centering grooves and 6 tee slots for ANSI Tee nuts
● High frequency protected for Tig welding
● Dynamic braking brings table rotation to a quick stop
● Durable baked on enamel paint finish
● Infinitely variable table tilting with degree scale
● Clockwise and counter clockwise table rotation
● Highest quality design and construction available
