WC67Y-200T/3200 NC Press Brake Bending Machine Sheet Metal Bending Brake
Steel Sheet Material | Q235A | COntroller | E21 |
---|---|---|---|
Steel Sheet Strength | 450N.M | Seals Ring | Valqua, Japan |
Mold Material | T8 | Electric Components | Schneider Or Siemens |
High Light | hydraulic press brake machine,sheet metal bending machine |

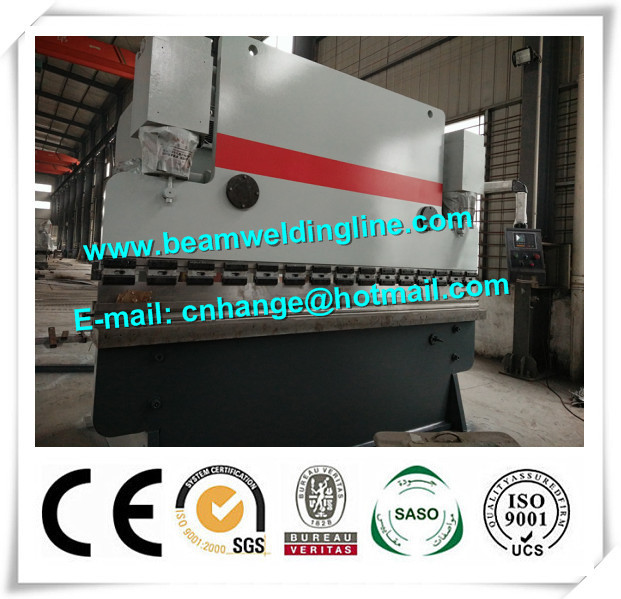

WC67Y- 200T/3200 Hydraulic Press Brake Machine
1. Overview
● The device adopts all steel-welded construction, and vibratory stress relief. Thus the device with good rigidity and high strength, to permit high accuracy.
● The whole frame with good rigidity, work is stable, safety and reliable, easy to operate.
● To adopt stress theory to control the deformation of structural parts effectively, so can to get satisfied work-piece.
● Crowning mechanism: upper rapid clamping fixture, which has both quick fastening and crowning function.
2. Technical parameters
Model | Units | WC67Y-200T/3200 | |
Bended steel sheet strength | N/mm2 | 450 | |
Bended steel sheet thickness | mm | 8 | |
Nominal pressure | kN | 2000 | |
Worktable length | mm | 3200 | |
Distance between uprights | mm | 2520 | |
Throat depth | mm | 400 | |
Ram stroke | mm | 200 | |
Maximum opening height | mm | 480 | |
Gear pump | Model | / | CP0-40-P-10R |
Flow | L/min | 40 | |
Pressure | MPa | 31.5 | |
Ram speed | Unloaded | mm/s | 60 |
Work | mm/s | 8 | |
Return | mm/s | 70 | |
Working Pressure of hydraulic system | Mpa | 26 | |
Main motor Power | kW | 15 | |
Net Weight | kg | 11500 | |
Overall dimension | mm | 3100*1800*2850 |
