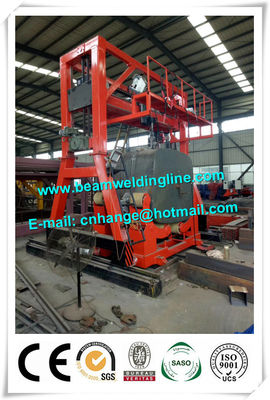

Oil Tank Welding Rotator , Automatic Welding Positioner For Tank Seam Welding

  • Oil Tank Welding Rotator , Automatic Welding Positioner For Tank Seam Welding
  • Oil Tank Welding Rotator , Automatic Welding Positioner For Tank Seam Welding
  • Oil Tank Welding Rotator , Automatic Welding Positioner For Tank Seam Welding
  • Oil Tank Welding Rotator , Automatic Welding Positioner For Tank Seam Welding
  • Oil Tank Welding Rotator , Automatic Welding Positioner For Tank Seam Welding
Place of Origin CHINA
Brand Name Friendship Machinery
Certification CE, ISO
Model Number SH Series
Minimum Order Quantity 10 sets
Packaging Details Export Standards
Delivery Time 30-40 working days
Supply Ability 50 sets per month
Product Details
Panel Thickness 1.5-6mm Products Name Tank Welding Rotator
Tank Diameter 1500-2000mm Welding Way MIG/ SAW
Standard CE, ISO Loading Capacity 2-20tons
High Light

welding turning rolls

,

column and boom welding manipulators
Leave a Message
Product Description



Oil Tank Welding Rotator



Automatic Welding Positioner For Tank Seam Welding



Long seam welding rotator for tank





1. Description

        The welding rolls frame of HGZ series and HGK series designed and manufactured by the company absorbs domestics and overseas advantages of similar products. It is designed and manufactured according to using requirements for pressure vessel manufacturers. The product is applicable for manual welding and automatic welding of metal cylinder. It is featured with advanced technology, reliable quality, easy operation and other advantages.Two groups of roller unit with turn a certain angle are installed on base of drive and idler rotator, two groups of roller unit can turn a certain angle by revolve its mandril, so it can automatic adjusted according to specification of work piece, ensure stable and continuous running of work piece.



2. Specification

Model HGZ-05 HGZ-10 HGZ-20 HGZ-40 HGZ-60 HGZ-80

Rated loading

(T)

 5 10 20 40 60 80

Vessel diameter

range (mm)

 250-2300 320-2800 500-3500 600-4200 750-4800 850-5000

PU roller

dia. And width

(mm)

 250*100 300*120 350*140 400*180 450*180*2 450*200*2

Linear speed

(mm/min)

 100-1000mm/min



Oil Tank Welding Rotator , Automatic Welding Positioner For Tank Seam Welding 0



Oil Tank Welding Rotator , Automatic Welding Positioner For Tank Seam Welding 1
