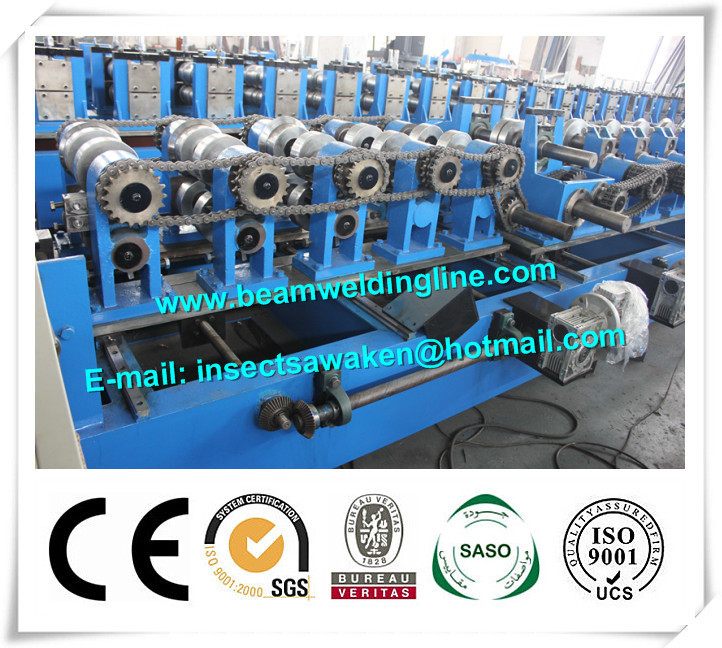

Blue Interchangeable C Z Purlin Roll Forming Machine Fully Automatic
High Light | corrugated roll forming machine,metal roll forming machine |
---|
Blue Interchangeable C Z Purlin Roll Forming Machine Fully Automatic
1. Technical date
a. For C purlin: width 80-300mm, height 40-80mm, small rib 14-25mm
b. For Z purlin: width 80-300mm, height 40-80mm, small rib 14-25mm
2. Main machine
a. Manual uncoil: idle model without any power
b. Loading capacity of uncoil: 3tons
c. Main machine frame: adopts h beam complete welded
d. Guide model: side roller model
e. Transmission model: wall model chain transmission
f. Roller diameter: 70mm
g. Driven model: motor, 18.5KW
h. Hydraulic station power: 5.5KW
i. Forming speed: 20m/min
j. Roller station: 16 main stations and a series assist rollers
k. Roller material: GCR15 quenching HRC58-62, chromium plating surface treatment
l. Main axis material: Cr40 conditioning HRC28-30
m. Cut off method: hydraulic cutter (one set)
n. Forming thickness: 1.5-3mm
o. Measuring precision: ±2mm
p. Electric and hydraulic part
- PLC control, the inverter has the functions of automatic control, mechanical or hydraulic drive and alarming
- control panel has buttons, switch and emergency stop, 7.5’ touch screen
- hydraulic parts from Taiwan
q. Working environment
- power: 415V60HZ
- current: less than 30KW
3. Working steps
Uncoil - Guide and leveling - Roll forming - Punching - Hydraulic cut off - Output
Manual uncoiler: 3tons | ![]() |
![]() |
Output table 2 sets |
