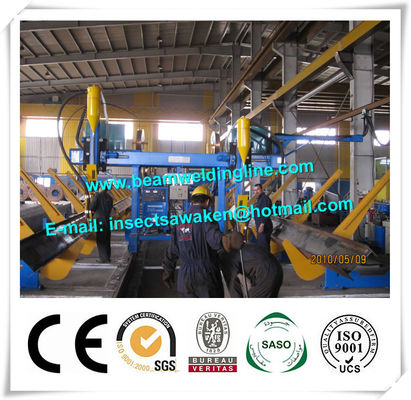

Professional T Type Submerged Arc Welding Machine For H Beam Production Line
1. Main technical parameter
● The width of the flange: 200-1000mm
● The height of the web: 200-2500mm
● Length of the track: 18000mm
● Machine span: 1700 mm
● Welding position: fillet welding in the flat position
● Welding speed: 0.24-2.4m/min
● Welding wire diameter: 3.2-5 mm
● Drive: double sides
T-type welding machine is specially designed for the welding of H beam. It realized the combination of welding control and trolley control and can be operated easily. Driven by alternating current converter; stable speed, digital display of the linearity speed, good reliability, there is no three-axle mechanical tracing arc guiding mechanism; floating type tracing to guarantee that the welding torch targeting at the welding seam accurately. The power line for the submerged arc welding can move on the portal frame to shorten the length of the control cable and the welding cable as far as possible to quicken the response, reduce the pressure and stabilize the welding current.
3. Provide goods and compose parts
● Machine assembly: door frame, running gear, horizontal sliding gantry.
● Welding tractor: reduction column, electrical transmission, mobile body and its annex.
● Arc guiding device: welding gun, mechanical tension wire.
● Welding powder recycle system: 100Kg solder powder recycling machine, separate feeding trough.
● Electronic control system: control box, AC variable frequency bilateral drive.
● Welding system: Chengdu ME-1250 series submerged arc welder, welding cable, transmission cable.
● Spare parts: Tip*6, fuse 5A, 1A*3, button switch*3, melt the core 10A*2.
4. Technical files
● Using manual of the machine (Include electrical schematic)
● Shipping list
● The certification of the machine
● The basis of drawing of the machine
