Light Street Pole Automatic Welding Machine For Wind Tower Production
High Light | self aligned welding rotator,weld manipulator |
---|
Light Street Pole Automatic Welding Machine For Wind Tower Production
6-14m street light pole making machine
Street Light Pole Machine
street lighting pole welding machine

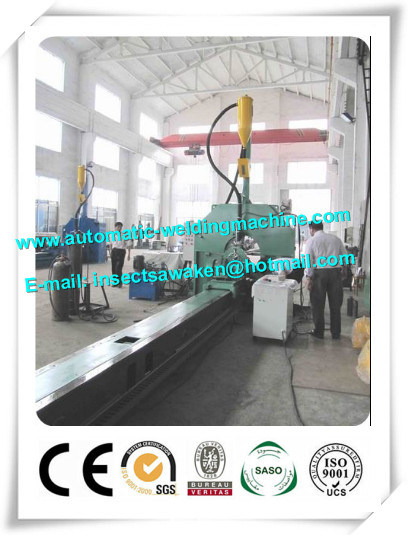

This machine composed by main machine head, tractive body and feeding shelf. Tractive body was moved by collet in small vehicle nipping the steel pole’s collet. When the small vehicle moved,drived steel pole, from small collet to big collet, regularity moved.the big side of the steel pole was hold by feeding vehicle, force automatic sewing from head of machine to steerable wheel. At one time, the welding machine starts welding, this machine adopt multiple wire submerged arc welding, solder was reclaimed automatic.
Main technology parameter
No. |
Item |
Specification |
|
1 |
Welding seam length |
≤12000mm |
|
2 |
Maximum material thickness |
6mm |
|
3 |
Main header size |
1500*480*1645mm |
|
4 |
Worktable size |
15500*400*480mm |
|
5 |
Maximum steel tube diameter |
φ320mm |
|
6 |
Maximum steel tube diameter |
φ60mm |
|
7 |
Welding current |
630A |
|
8 |
Driven motor |
YCT160-4B, 3kw |
|
9 |
Oil pump motor |
Y2100Ll2-4, 3kw |
|
10 |
Recovery motor |
Y90L-2, 2.2kw |
|
11 |
Gear pump |
CBN-E306, 25ml/r |
|
12 |
Maximum pressure system |
20Mpa |
|
13 |
System working pressure |
≤5Mpa |
|
14 |
Size |
L |
33000mm |
W |
1600mm |
||
H |
1650mm |
||
15 |
Weight |
5500kg |
