Laboratory Industrial Safety Cabinets Flammable For Chemical Storage

Place of Origin China
Brand Name Eagle or Securall
Certification EPA, SPCC, NPDES
Model Number FSM
Minimum Order Quantity 1
Packaging Details Wooden pallet
Delivery Time 20 working days
Supply Ability 50 sets per month
Product Details
High Light

Fireproof File Cabinet

,

Fire Hose Reel Cabinets

Leave a Message
Product Description

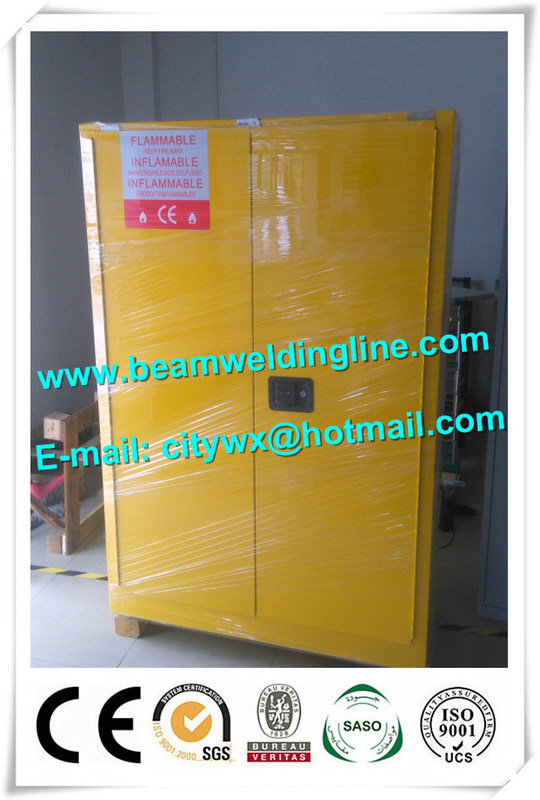

Laboratory Industrial Safety Cabinets Flammable For Chemical Storage

Capacity
Gal/ L
Number of doors
and style

Dimensions

H x W x D

Adjustable
shelves
Sump capacity
Gal/ L
Model No. Ship Wt
exterior Interior lb/ kg
Exterior Interior
30/ 114 2 door, manual 44 x 43 x 18 in
1118 x 1092 x 457 mm
39.56 x 39.5 x 14.56 in
1006 x 1003 x 370 mm
1 5.2/ 19.7 FSM0030 231/ 105.0
45/ 170 65 x 43 x 18 in
1651 x 1092 x 457 mm
60.5 x 39.5 x 14.56 in
1537 x 1003 x 370 mm
2 FSM0045 311/ 141.0
60/ 227 65 x 34 x 34 in
1651 x 864 x 864 mm
60.5 x 30.75 x 30.31 in
1537 x 781 x 771 mm
8.3/ 31.5 FSM0060 388/ 176.0
90/ 341 65 x 43 x 34 in
1651 x 1092 x 864 mm
60.5 x 39.5 x 30.31 in
1537 x 1003 x 771 mm
10.7/ 40.6 FSM0090 481/ 218.0







Designed to meet American standards of OSHA and NFPA (CODE 30), for regulated storage of flammable, combustible, and hazardous materials.



Double-walled steel structure with 1.5” (38mm) insulation for fire resistance.



Welded 1.2mm thickness steel offers optimum longevity with increased heat resistance.



Threepoint locking system with two keys for security, available for optional Master Lock to limit access to authorized personnel.



2” (50mm) leakproof sump for spills containment.



Normative safety signage in large red lettering.



Two vents with integral flame arrestors.



● Adjustable spill-catching shelves, adjust by 2 1/4” (6mm) up/ down.



Cabinets are epoxy painted for both inner and outer.



Grounding connector for antistatic earthing, as per OSHA standard.
