CNC And NC Sheet Metal Bending Machine Hydraulic Press Brake Machine

China CNC And NC Sheet Metal Bending Machine Hydraulic Press Brake Machine supplier
CNC And NC Sheet Metal Bending Machine Hydraulic Press Brake Machine supplier CNC And NC Sheet Metal Bending Machine Hydraulic Press Brake Machine supplier CNC And NC Sheet Metal Bending Machine Hydraulic Press Brake Machine supplier CNC And NC Sheet Metal Bending Machine Hydraulic Press Brake Machine supplier

Large Image :  CNC And NC Sheet Metal Bending Machine Hydraulic Press Brake Machine

Product Details:

Place of Origin: CHINA
Brand Name: FRIENDSHIP MACHINERY
Certification: CE, ISO
Model Number: WY67Y

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Standard Packing
Delivery Time: 30 working days
Contact Now
Detailed Product Description
Control Way: CNC Or NC Power Source: Hydraulic
Function: Punching And Pressing Model: WC67Y
Control System: E21 System Warranty: 1 Year

Hydraulic press brake
Pressure from 40 to 1000 Kn, length of work table from 2200 to 7000 mm and can be equipped with CNC.



1. Total-steel-welded construction is designed of full strength and rigidity with hydraulic upper drive.
2. Function of swift up and pressurization as well as swift return and pressure relief.
3. Ram synchronization adopts device of torque shaft and gadget block.
4. Motorized adjustment to ram stroke and backgauge position, manual fine adjustment with numerical display.
5. Upper die adopts the slanted flexible compensation device.
6. Large-scale worktable adopts hydraulic flexible compensation device for automatic compensation to bending-caused flexibility



Model Pressurekn Length of work table Distance of both pole Depth of groove Stroke Maximum height between work table and ram Main motor Weight Dimension (LxWxH)
WC67Y-40/2200 400 2200 1775 220 80 300 4 2500 2600x1100x1920
WC67Y-40/2500 400 2500 1925 220 80 300 4 3000 2650x1100x1950
WC67Y-50/2500 500 2500 2015 220 100 340 4 3750 2650x1250x2100
WC67Y-63/2500 630 2500 2015 250 100 340 5.5 4300 2650x1300x2200
WC67Y-80/2500 800 2500 2010 250 120 380 5.5 5200 2560x1350x2250
WC67Y-80/3200 800 3200 2510 250 120 380 5.5 6000 3260x1350x2280
WC67Y-100/2500 1000 2500 2050 320 150 420 7.5 6700 2550x1360x2270
WC67Y-100/3200 1000 3200 2550 320 150 420 7.5 7200 3260x1365x2520
WC67Y-100/4000 1000 4000 3050 320 150 420 7.5 8500 4060x1365x2720
WC67Y-125/3200 1250 3200 2550 320 150 420 7.5 7800 3260x1465x2600
WC67Y-125/4000 1250 4000 3050 320 150 420 7.5 9000 4060x1460x2800
WC67Y-160/3200 1600 3200 2590 320 200 475 11 10500 3260x1580x2775
WC67Y-160/4000 1600 4000 3040 320 200 475 11 12500 4060x1580x2925
WC67Y-160/6000 2000 6000 4800 320 200 480 11 19500 6060x1580x3480
WC67Y-200/3200 2000 3200 2580 320 200 475 18.5 13200 3260x1650x2800
WC67Y-200/4000 2500 4000 3030 320 200 475 18.5 14800 4060x1640x3025
WC67Y-250/4000 2500 4000 3130 400 250 530 18.5 19000 4060x1840x3150
WC67Y-250/5000 3000 5000 3930 400 250 530 18.5 24000 5060x1840x3450
WC67Y-300/3200 3000 3200 2530 400 250 580 18.5 18000 3300x2100x2980
WC67Y-300/4000 3000 4000 3200 400 250 580 18.5 22000 4060x2040x3330
WC67Y-300/6000 3000 6000 4720 400 250 580 18.5 32000 6060x1040x3830
WC67Y-400/4000 4000 4000 3180 400 320 630 30 30000 4060x2220x3630
WC67Y-400/6000 4000 6000 4700 400 320 630 30 45000 60602x2203x980
WC67Y-500/6000 5000 6000 4600 500 320 70 30 55000 6080x2760x4000
WC67Y-800/6000 8000 6000 4600 500 400 900 37 72000 6100x3250x4300
WC67Y-1000/6000 10000 6000 4600 600 400 900 50 100300 6250x3400x7100

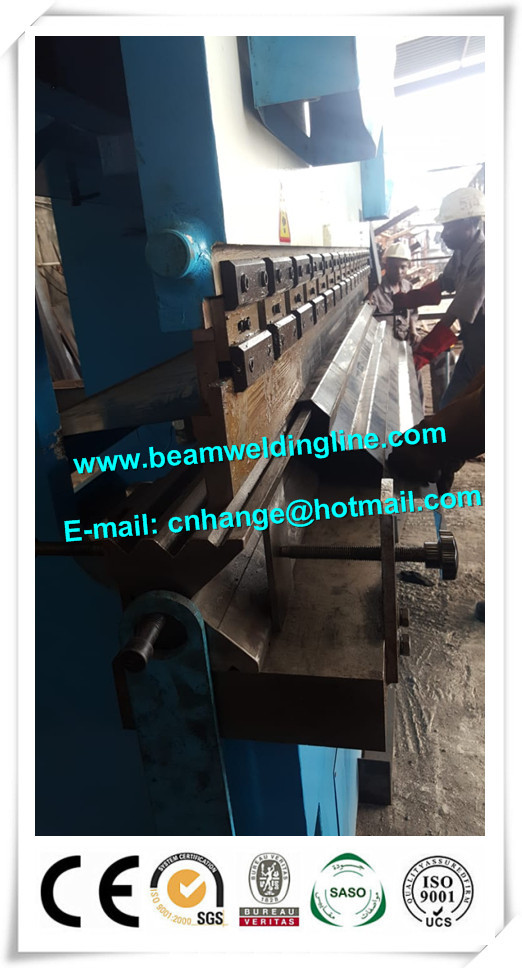

CNC And NC Sheet Metal Bending Machine Hydraulic Press Brake Machine



CNC And NC Sheet Metal Bending Machine Hydraulic Press Brake Machine
