Detailed Product Description
Tube Panel Width: 1600mm Driven Method: Mechanical Type
Maximum Bending Angle: 150 Degree Bending Power: 2tons

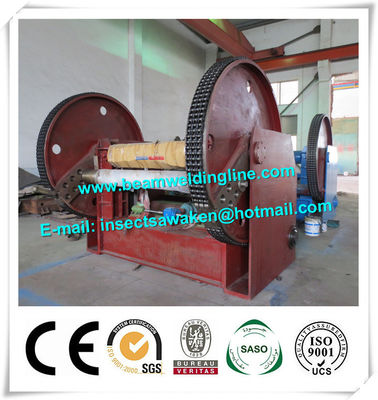

Mechanical Industrial Boiler Membrane Panel Welding Machine for Wall Panel





1. Technical parameters



No.

Item

Specification

1

Pipe diameter

φ28-φ63.5mm

2

Maximum width of pipe panel

1600mm

3

Maximum clamp power

2 T

4

Largest bending angle

α = 150 °

5

Bend radius

R = 180-450mm

6

Bending speed

≈ 0.26r/min

7

Motor

7.5kw





2. Control system


    Touch screen, PLC, remove control switch. Bending the welded pipe panel into the required size, motor as power, with the advantages of simple structure, ease of operation.





3. Composition of equipment


● Mechanical components are composed Machine body, driven system mechanical bending system.
● Main body is welded steel structure, tempered by big oven to remove strength.
● Design and make according to China national standard, to ensure machine durability.
● Use good quality steel tampered, quenched after processing, make machine have enough rigidity and toughness.
● Electrical control system is composed of touch screen, PLC, remote control and so on.
● Touch screen show current angle, can set bending angle. Angle is controlled by PLC, make sure bending accuracy reach 0.1 degree.





4. Mold and accessory (buyer has to buy separately)



No.

Name

Q’ty

1

pipe bending dies

1set

2

roller

1set

3

Panel roller rack

1set





5. Scope of supply



No.

Name

Model

Q’ty

1

Main machine

ZZCPJ1600-S

1set

2

Motorized clamp system



1 set

3

Control panel



1 pc

4

Remote control



1pc







Mechanical Industrial Boiler Orbital Tube Welding Machine For Wall Panel
