Small Tube Squeezing Machine Membrane Panel Welding Machine For Boiler Pipe

Good quality H Beam Welding Line for sales
Good quality H Beam Welding Line for sales
I'm Online Chat Now

Small Tube Squeezing Machine Membrane Panel Welding Machine For Boiler Pipe

China Small Tube Squeezing Machine Membrane Panel Welding Machine For Boiler Pipe supplier
Small Tube Squeezing Machine Membrane Panel Welding Machine For Boiler Pipe supplier Small Tube Squeezing Machine Membrane Panel Welding Machine For Boiler Pipe supplier Small Tube Squeezing Machine Membrane Panel Welding Machine For Boiler Pipe supplier Small Tube Squeezing Machine Membrane Panel Welding Machine For Boiler Pipe supplier

Large Image :  Small Tube Squeezing Machine Membrane Panel Welding Machine For Boiler Pipe

Product Details:

Place of Origin: China
Brand Name: Friendship Machinery
Certification: CE, ISO
Model Number: ZZ Series

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Standard package
Delivery Time: 30 working days after down payment
Contact Now
Detailed Product Description
Sizing Tube Diameter: 32-76mm Sizing Tube Thickness: 3-12.7mm
Bend Radius Before Squeezing: 1.5D Bend Radius After Squeezing: 0.6-1.2D



Small Tube Sizing Machine Membrane Panel Welding Machine for Boiler Pipe





1. Model


● This equipment is designed simply as C type and has 9 oil cylinders for hydraulic drive.


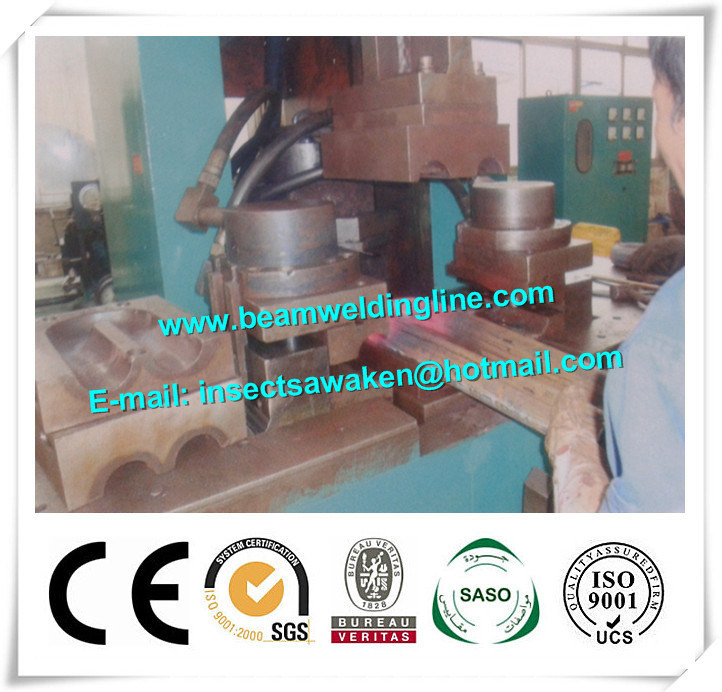

● It is used to squeeze and calibrate small heated elbow on the same level. A qualified 180°elbow of Φ=76mm thickness=12.7mm R=1.5D can be squeeze to R=0.6D and achieve technical requirement.





2. Technical detail


● Pipe diameter: D=Φ32-Φ76mm
● Pipe thickness: 3-12.7mm
● The bend radius of 180° elbow before squeezing: R=1.5D
● The bend radius of 180° elbow after squeezing: R=(0.6-1.2) D
● The maximum open distance of clamp made: L=400mm
● Squeeze pressure: F= 45t
● Calibration pressure: F=120t
● Hydraulic system pressure: N=16Mpa
● Pump power: N=18.5kw





3. Constitute


● C-type frame (lathe bed), have nine oil cylinder, hydraulic transmission
● Calibration cylinder maximum180t
● Back pressure cylinder
● Left and Right squeeze mechanism
● Up/down of under mode calibrated by slide
● Mainly uses PLC control, heating control in the same panel, simple operation, low failure rate. Use sensor to test squeezing distance





4. Parts supplied



No.

Name

Model

Q’ty

1

Main machine

ZZSRJZJ

1

2

Induction furnace



3

Water cooling system



4

Hydraulic system



5

Mold

Client provide size

6

Control panel



7

Operation table







Small Tube Squeezing Machine Membrane Panel Welding Machine For Boiler Pipe
