Remote Control Gear Joggle Transmission Pipe Welding Rotator Positioner

Product Details

Place of Origin: China

Brand Name: Friendship Machinery

Certification: CE, ISO

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: Steel framework and wire mesh

Delivery Time: 30 sets per month

Get Best Price
Highlight:

gear joggle transmission pipe Welding positioner

,

remote control Pipe Welding Rotator

,

remote control pipe Welding positioner

Remote Control Gear Joggle Transmission Pipe Welding Rotator Positioner

Automatic Pipe Welding Rotators , Vessel Welding Turning Roller





1. The swing angle of roller group can be automatically regulated according to the work piece diameter and size and manual calibration is not needed.


2. The active roller stand adopts gear joggle transmission.


3. Steel glue assembly roller, long ton adopts full steel rolling, which has big loading capacity and driven capacity.


4. Imported frequency conversion speed regulator, which features in wide regulation width, big starting power and high adjustable precision.


5. Manual conrol box operation, which can be remote controlled and it is simple and reliable.







Capacity

(T)

Roller Diameter

(mm)

Roller Width

(mm)

Roller speed

(m/h)

Adaptation welding Rotator (mm)

Speed control mode
2 180 100 6-60 220-1200 frequency speed control
5 200 130 6-60 250-2200
10 300 150 6-60 320-3500
20 300 200 6-60 450-3500
30 350 250 6-60 500-4500
50 400 300 6-60 500-4500
70 400 300 6-60 600-5000
100 500 300 6-60 700-5500
150 500 300 6-60 800-6000
200 600 300 6-60 800-6000
250 600 320 6-60 800-6000
300 800 320 6-60 1000-6500
350 800 350 6-60 1000-6500
400 800 350 6-60 1000-7000
450 800 350 6-60 1000-7000
550 800 350 6-60 1000-8000

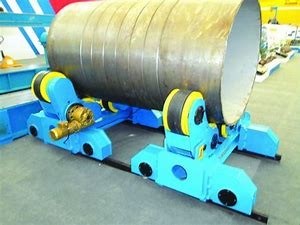

Remote Control Gear Joggle Transmission Pipe Welding Rotator Positioner 0



Remote Control Gear Joggle Transmission Pipe Welding Rotator Positioner 1



Remote Control Gear Joggle Transmission Pipe Welding Rotator Positioner 2
