Automatic PLC H Beam Welding Line Machine 900mm/S Speed

Place of Origin China
Brand Name Friendship Machinery
Certification CE, ISO
Model Number FSM Series
Minimum Order Quantity 1
Packaging Details Standard export packing
Delivery Time 30 working days
Product Details
Name Automatic H Beam Welding Line / Machine Keyword Automatic H Beam Welding Line
Model FSM Series
High Light

900mm/s speed h beam welding line

,

automatic plc h beam welding line

,

plc beam welding line machine

Leave a Message
Product Description

H Beam Automatic Welding Machine Auto H-Beam Production Line



Shipyard Production Lines
        Friendship Machinery has since its involvement in shipbuilding developed production systems which substansially increase shipyard profitability and competitiveness through improved productivity, quality and increased capacity. Friendship Machinery offers complete production lines for welding and assembly of steel sections. All Friendship Machinery production lines utilise highly efficient integrated material handling systems in order to optimise the production processes. Friendship Machinery has supplied more than 200 production systems to a 100 shipyards in 30 countries.



        T panel longitudinal assembling machine (T bar longitudinal mounting machine) is composed of two drive devices, main door frame, T-bar lifting device, longitudinal clamping device and lifting device, main beam, moving trolley, left and right moving body, welding system and other components, mainly used for automatic assembly and positioned welding of longitudinal.



Item Parameter
Corrugated web forming machine Suitable material Yield strength 345Map
Steel width 500-1500mm
Steel thickness 2-5mm
Profile dimension Wave height 40-50
Distance of waves About 155
Steel feeding mode Conveyor
Corrugate web output mode Transmission chain
Feeding power 25kw
Total weight About10000kgs
Dimension 6235*1640*2500mm
Corrugated web H-beam automatic robot welding machine Work-piece dimension Work-piece length 4000-20000mm
Web thickness 2-5mm
Web height 500-1500mm
Flange thickness 10-30mm
Flange width 150-500mm
Welding mode Imported robot two position welding at the same time
Welding type CO2 welding
Cutting type Plasma cutting
Scanning speed 900mm/s
Total power 223kw
Dimension 22000*6500*3500mm
Total weight About 46000kgs







Automatic PLC H Beam Welding Line Machine 900mm/S Speed 0



 Automatic PLC H Beam Welding Line Machine 900mm/S Speed 1



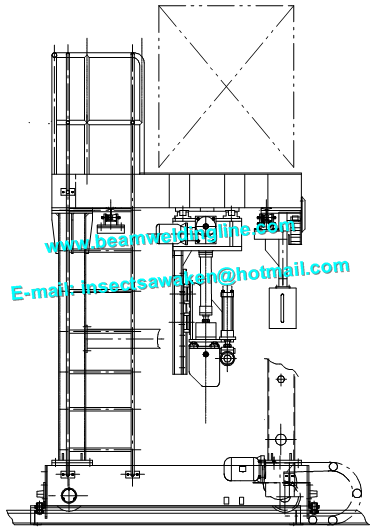

Structure showing for T panel fit up machine
