Semi Trailer Industry Automated Welding Machines , H Beam Welding Line
Welding Method | Submerged Arc Welding | Welding Wire | 3.2mm/ 4.0mm |
---|---|---|---|
Welder | Huayuan/ Zhengzhong/ Aotai | Rail/ Welding Cable | Include |
Welding Positioner | Horizontal Welding | ||
High Light | h beam assembling machine,submerged arc welding machine |

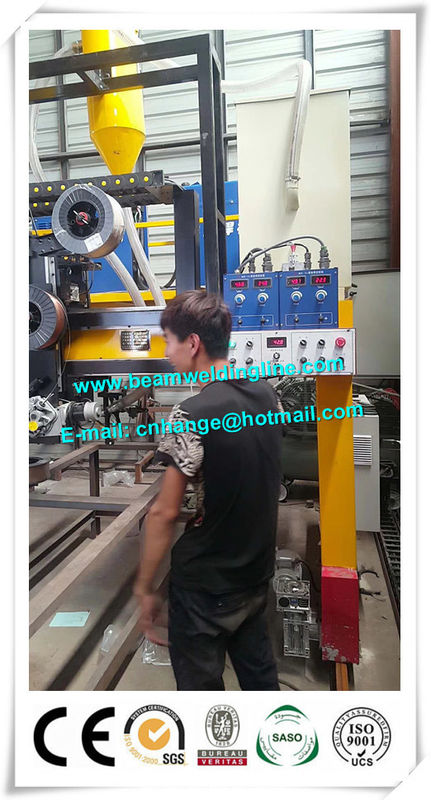

Semi-trailer H beam production line
1. Main features
● This machine could welding two seams at the same time, especially to viable cross section and tapered h beam.
● It will adopts advanced PLC and microelectronic technology control, quality is good, production efficiency is high, operate is easy.
● It has flexible automatic profiling technology to achieve automatically tracking, avoid repair welding to cross section part, save material and improve production capacity.
● Single arc and single wire big current submerged arc welding technology, save the cost of the welding wire, reduce the splash and arc light, and welding seam smoothly.
2. Specification
● Web height: 200-1200mm
● Web thickness: 4-14mm
● Flange width: 50-600mm
● Flange thickness: 6-25mm
● Length of the beam: 12000mm
● Air pressure: 0.6-0.8Mpa
● Height of the workbench: 670mm
● Flange and web clamp method: air cylinder (every 600mm with one air chamber)
● Work-piece transport method: roller
