Hydraulic Angle Cutting And Punching , Hydraulic Shearing Machine For Angle Iron
Hole Diameter | 16mm | Angle Thickness | 5-8mm |
---|---|---|---|
Motor | 3kw | Speed | 15m/min |
Driven Way | Hydraulic | Function | Cutting Angle/ Cutting Off/ Punching |
High Light | hydraulic guillotine shearing machine,cnc hydraulic shearing machine |
Description

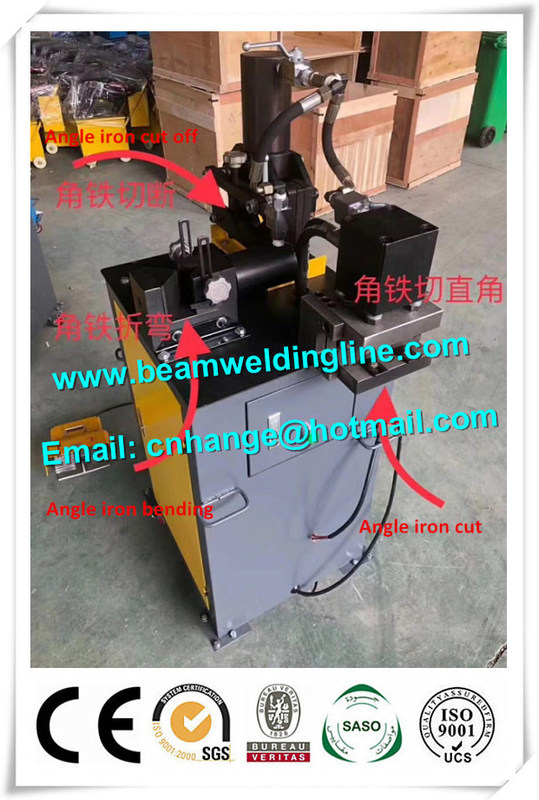

Hydraulic Angle steel cutting and punching machine Manufacturer
The angle steel master ,it’s used for notching or cutting right angle on sheet metal, this angle shearing machine has a steel welded structure which confirms enough stiffness and physical strength. Adopt hydraulic drive. Can adjust the angle between 40˚-130˚, and this machine has a small size, lightweight, and a novel structure. It is suitable to process metal plate with a fast and accurate processing and the notching quality is good.
Specifications
Model | angle size (mm) | Maximum hole diameter (mm) |
Thickness (mm) |
speed (m/min) |
Motor (kw) |
Weight (Kg) |
Dimension (mm) |
PM75 | 75 | 16 | 5 | 15 | 3 | 300 | 500*500*1200 |
PM100 | 100 | 16 | 8 | 15 | 4 | 350 | 500*500*1300 |
