Hydraulic Guillotine Shearing Machine , Swing Type Shearing Machine For Sheet
Shearing Thickness | 10-40mm | Width | 2000-8000mm |
---|---|---|---|
Voltage | 380V/ 50HZ | Warranty | 1 Year |
System | E21S | Power | Hydraulic |
High Light | hydraulic guillotine shearing machine,cnc hydraulic shearing machine |

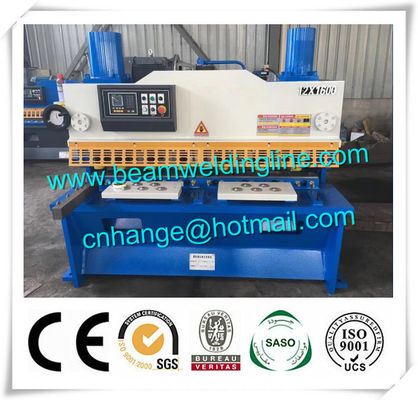

Hydraulic Guillotine Shearing Machine
Swing Type Shearing Machine For Sheet
1. Sheet plate welded structure is adopted with hydraulic transmission and accumulator return, typical of an easy operation reliable performance and nice appearance .
2. Indication by indicator is prompt for adjustment of blade clearance. for a handy and prompt adjustment .
3. Alignment device with lighting and control device for shearing stroke are set. with a handy and prompt adjustment .
4. Rolling material support ball is provided. to minimize fish tail with sheet bar and to reduce frictional resistance.
5. The rear stopper is fitted with electric adjustment and manual adjustment devices. and digital display device is available for display of size of stopper and times of shearing.
Model |
Cutting Thickness (mm) |
Cutting Length (mm) |
Cutting Angel (°) |
Materail Strength (KN/CN) |
Stopper Adjust Range (mm) |
Stroke Times |
Motor Power (kw) |
Dimension (L*W*H)(mm) |
4*2500 | 4 | 2500 | 1°30' | ≤450 | 20-500 | 16 | 5.5 | 3040*1550*1550 |
6*2500 | 6 | 3200 | 1°30' | ≤450 | 20-500 | 15 | 7.5 | 3040*1710*1620 |
8*2500 | 8 | 2500 | 1°30' | ≤450 | 20-500 | 11 | 7.5 | 3040*1700*1700 |
10*2500 | 10 | 2500 | 1°30' | ≤450 | 20-500 | 10 | 11 | 3040*1800*1700 |
12*2500 | 12 | 2500 | 2° | ≤450 | 20-600 | 12 | 18.5 | 3140*2050*2000 |
16*2500 | 16 | 2500 | 2°30' | ≤450 | 20-600 | 10 | 18.5 | 3140*2150*2000 |
20*2500 | 20 | 2500 | 3° | ≤450 | 20-800 | 8 | 22 | 3440*2300*2500 |
25*2500 | 25 | 2500 | 3° | ≤450 | 20-1000 | 8 | 37 | 3200*2700*2900 |
30*2500 | 30 | 2500 | 3° | ≤450 | 20-1000 | 4 | 37 | 3300*2900*3000 |
40*2500 | 40 | 2500 | 4° | ≤450 | 20-1000 | 3 | 75 | 3200*3300*3200 |
