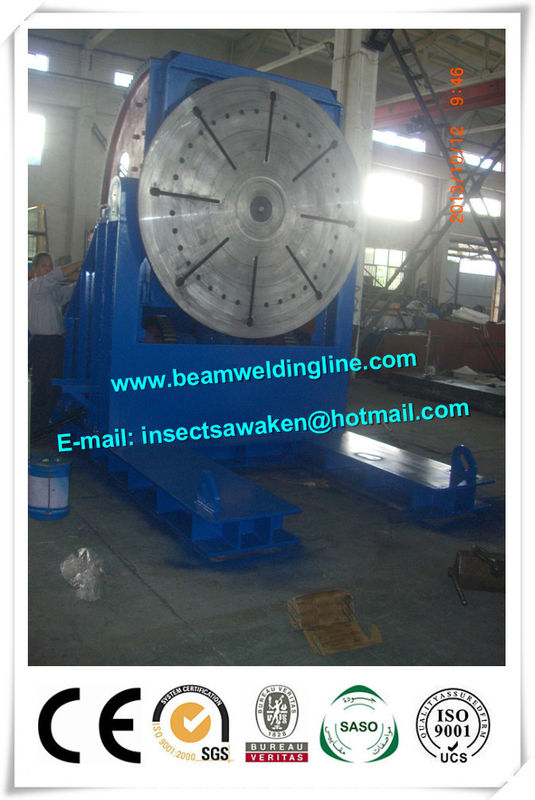

Automatic Tilting Welding Turn Table Pipe Positioner For Tank Welding
1.welding positioner
It is mainly used for overturnig and switching some medium sized work pieces, such as shafts, discs cylinders to get the ideal welding position and speed. It is usually work with the equipment such as manipulator and welding machines to form the auto welding system. It is also can be used in manual welding assembling, polishing and crack-defection, etc.
2.Description
Finish machining processing stable: To avoil damage from welding splitter. Take imported traducer control, the stability of the complet machine is good.
Equally distribute the position wire and t-stud: It is easy to clip, position and install work piece.
Multi-protection of machinery and electricity: This can ensure the safety of the user, the equipment can work reliably.
3. Technical parameter
|
Model |
WP01 |
WP03 |
WP06 |
WP12 |
WP30 |
WP50 |
WP100 |
WP200 |
WP300 |
WP500 |
|
Load capacity (ton) |
0.1 |
0.3 |
0.6 |
1.2 |
3 |
5 |
10 |
20 |
30 |
50 |
|
Revolve speed(rpm) |
0.4 4 |
0.1 1 |
0.09 0.9 |
0.05 0.5 |
0.05 0.5 |
0.05 0.5 |
0.05 0.5 |
0.04 0.4 |
0.03 0.3 |
0.02 0.2 |
|
Tilt speed (mm/min) |
Manual |
Manual |
0.4 |
0.4 |
0.2 |
0.2 |
0.2 |
0.15 |
0.15 |
0.06 |
|
Tilt angle (degree) |
90 |
90 |
90 |
90 |
135 |
135 |
135 |
135 |
45-90 |
45-90 |
|
Work-table dia. (mm) |
400 |
600 |
1000 |
1200 |
1400 |
1500 |
2000 |
2000 |
2500 |
4000 |
|
Revolve power (kw) |
0.18 |
0.18 |
0.25 |
0.75 |
1.1 |
1.5 |
3 |
5.5 |
5.5 |
11 |
|
Tilt power (kw) |
Manua |
0.18 |
0.37 |
0.75 |
2.2 |
3 |
4 |
11 |
15 |
18.5 |
|
Speed control |
VFD |
|||||||||
|
Max ec distance (mm) |
100 |
150 |
150 |
200 |
200 |
200 |
200 |
200 |
200 |
200 |
|
Max gra. Distance (mm) |
200 |
200 |
200 |
250 |
300 |
300 |
400 |
600 |
6000 |
800 |
|
Lifting stroke |
/ |
/ |
800 |
1000 |
1000 |
1000 |
1000 |
1250 |
1250 |
1500 |
