Product Details
Place of Origin: CHINA
Brand Name: FRIENDSHIP MACHINERY
Certification: CE, ISO
Model Number: GSD SERIES
Payment & Shipping Terms
Minimum Order Quantity: 1
Packaging Details: Standard packing
Delivery Time: 30 working days
Work-piece Size: |
3000*6000mm |
Drilling Thickness: |
6-100mm For Flame Cutting |
CNC System: |
Beijing Start Or Shanghai Jiaoda |
Arc Height Controller: |
HYD Or Ontime, China |
Servo Motor: |
Panasonic |
Nesting Software: |
Beijing Starfire |
Work-piece Size: |
3000*6000mm |
Drilling Thickness: |
6-100mm For Flame Cutting |
CNC System: |
Beijing Start Or Shanghai Jiaoda |
Arc Height Controller: |
HYD Or Ontime, China |
Servo Motor: |
Panasonic |
Nesting Software: |
Beijing Starfire |
cnc plasma cutting machine gantry

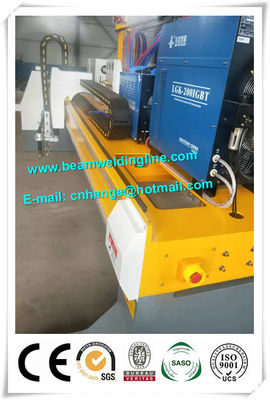

Gantry type cnc cutting machine with under water cutting plasma and flame cutting
cnc plasma cutting machine china manufacturer
| Item |
Gantry Type CNC Plasma Flame Cutting Machine |
| Effective working size | Length: 8000mm, Width: 4000mm. |
| Flame cutting thickness | 10-200mm |
| CNC system | F2300B/ Starfire cnc system (optional) |
| Nesting software | Fastcam/ Starcam nesting software |
| Height controller | Auto THC Height controller |
| Drive motor | Step motors bilateral sides drive (servo motor also available) |
| Machine working power | AC220V / 380V-50HZ/60HZ |
| Interface display | English, French, Russian, Danish, Portuguese etc. |
| Transmission mode | USB |
| Kerf compensation | Auto |
| Flame cutting gas | Oxygen, liquefied petroleum gas, propane, etc. |
| Lifting torch stroke(mm) | 1-150mm |
| Flame cutting speed | 50~700mm/min |
| Surrounding temperature | -5~45℃ |
| Relative humidity | <95% Non-condensing |
| Working surroundings | Ventilation,no great impact |
1. Main beam is welded into light box structure with special rectangular tube with good rigidity, high precision, light weight, small inertia and other characteristics, all the rectangular tubes used have been aged before welding. On the premise of ensuring strength, The rectangular tube is adopted with intermittent welding mode to control welding stress at the minimum level.
2. Longitudinal endframe is welded with several steel plates. The longitudinal drive system of the machine is installed in the center of the machine, which ensures the smooth operation of the machine. The operating platform is also installed on the mainframe to facilitate the operation of the equipment.
3. All the structural parts of the longitudinal endframe will be treated with surface shot blasting and vibration stress relief after the completion of splicing. In this way, the surface quality of the structural parts is good and the welding stress is eliminated.
4. Cutting machine gantry is a key component to ensure the accuracy and stability of this machine. It is particularly important to control the processing of the beam and endframe.
