15m/Min Keel Batten EPS PU Sandwich Panel Making Machine Chains Transmission
Coil Width | 101mm And 110mm | Working Speed | 15m/min |
---|---|---|---|
Roller Station | 6 Stations | Material Of Roller | 45# Steel |
Material Of Main Shaft | 45# Steel | Main Power | 5.5KW |
High Light | Keel Batten Sandwich Panel Making Machine,CE eps sandwich panel making machine,15m/Min eps sandwich panel making machine |

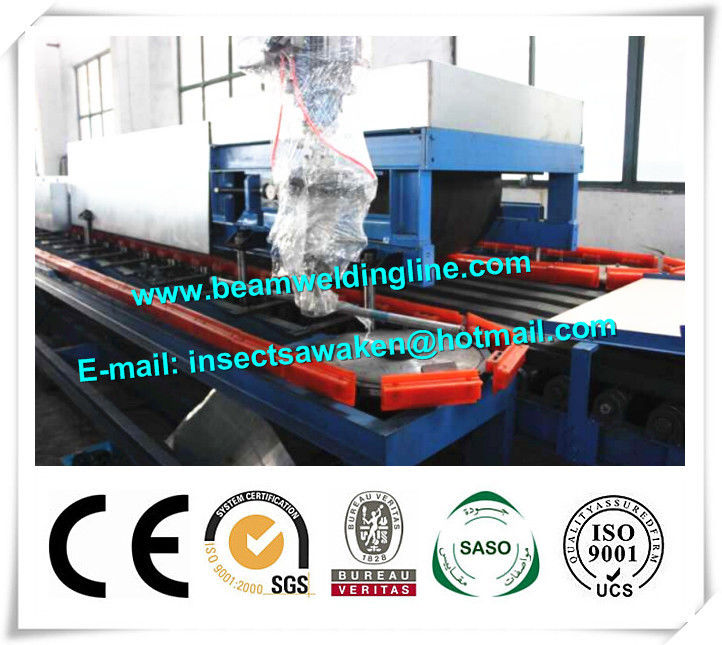

Continuous PU Sandwich Panel Production Line for Keel Batten / Steel Hoist
1. Composition of machine
● Roll forming main machine: 1 unit
● Manual uncoiler: 1 unit
● Control panel: 1 unit
● Hydraulic station: 1 unit
● Manual out table: 1 unit
2. Details of each composition
● Roll forming main machine
a. Coil width: 101mm and 110mm
b. Working speed: 15m/min (not contain cutting)
c. Roller station: about 6 stations include embossing rollers, double track rollers set
d. Material of roller: 45# steel, heat treatment
e. Material of main shaft: 45# steel, diameter of roller is 70mm
f. Main power: 5.5KW motor (built in machine)
g. Forming thickness: 0.45-0.55mm and Q235mpa
h. Transmission: by single chains 1.2 inch
i. Feeding and guide: surface polished and coated with chrome
j. Machine adopt new station
k. Cutting:
- cutting after forming: cut the sheet after roll forming to required length
- cutting motion: the main machine automatically stops and the cutting will take place, after the cutting, the main machine will automatically start
- material of blade: CR12with heat treatment
- length measuring: automatic length measuring
- tolerance of length: 3m+/- 1.5mm
● Uncoiler
|
![]() |
![]() |
● Control panel - Panasonic (main parts are built in bottom of machine except for touch Screen)
|
● Hydraulic station
|
![]() |
![]() |
● Manual out table
|
3. Character of main structure
● The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and process as a whole after welding. It has the ability of strong loading and stable operation when running the machine.
● All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
● We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming.
● It is very easy to install the equipment and suitable for producing in the factory.
● The machine has features of low noise and high efficiency.
4. Technological process
● Uncoiling - Roll forming - Cutting - Out table
![]() |
![]() |
