Product Details
Place of Origin: CHINA
Brand Name: Friendship Machinery
Certification: CE, ISO
Model Number: QC12Y
Payment & Shipping Terms
Minimum Order Quantity: 1
Packaging Details: steel framework
Delivery Time: 25 working days
Payment Terms: L/C, T/T
Supply Ability: 20 sets per month
Control System: |
ESTUN E21S |
Machine Type: |
Swing Type |
Power: |
CNC, Hydraulic |
Material: |
High Strength Carbon Steel |
Sheaing Thickness: |
10mm |
Shearing Width: |
3200mm |
Control System: |
ESTUN E21S |
Machine Type: |
Swing Type |
Power: |
CNC, Hydraulic |
Material: |
High Strength Carbon Steel |
Sheaing Thickness: |
10mm |
Shearing Width: |
3200mm |

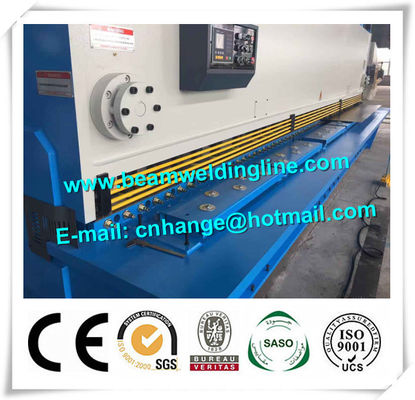

Heavy Duty Automatic CNC Hydraulic Guillotine Shearing Machine
1. Technical parameters
1. Rapid and precise blade clearance adjustment by single handle on the side frame
2. Multi Edge Blades for cutting Aluminium, Mild Steel and Stainless Steel
3. Cutting Line Illumination and wire for shadow line cutting
4. Counter of Strokes, Cutting Length Adjustment
5. Hydraulic and Electrical overload protection
6. Squaring Arm and Front Support Arms
7. Estun E21S NC control
8. Germany Bosch-Rexroth Hydraulic
9. Schneider Electrics
10. Hydraulic and Electrical overload protection
11. Delta inverter with ball screw and polished rod with 0,05 mm accuracy.
12. Side guard is standard meeting CE regulations.
| Model | Unit | QC12Y-10x3200 | |
| Controller | / | E21S | |
| Maximum shear thickness | mm | 10 | |
| Maximum shear width | mm | 3200 | |
| Shearing angle | ° | 1.5 | |
| Times of strokes | per/mm | 10 | |
| Blade length | mm | 3300 | |
| Distance between vertical columns | mm | 3420 | |
| Back gauge range | mm | 20-600 | |
| Work table height | mm | 765 | |
| Main motor power | kW | 15 | |
|
Axial plunger pump |
Model | / | 40MCY14-1B |
| Flow | ml/r | 40. | |
| Pressure | Mpa | 31.5 | |
| Electrical system | V/ Hz | 3 Phases, 380V, 50HZ | |
| Net weight | kg | 7500 | |
| Overall dimension | mm | 3750*1900*1870 | |
2. The device structure and character
● Hydraulic shearing machine blade part: with indicator to display cutting-edge gap adjustable value, the adjustment is simple and quick; logical display the shearing numbers.
● Workbench part: works pace install fence type safety protection device.
● Front bracket and back gauge: the front bracket placed on the workbench, indicate value by staff gauge, in order to reach the required stock value by adjust active stop dog, let cut thin plate is easy when use front bracket; the back gauge installed on up blade adapter, and it done lifting swing movement by up blade adapter, to adjust back gauge by driven motor, transmission by ball screw and straight guider after speed down by gearing, and it can manual micro-metric.
● Hydraulic system: it composed of control valve group, oil pump, cylinder, return cylinder, swaging cylinder, assembly hydraulic circuit and so on. The total system with the advantage like as reasonable construction, low noise, quick run, and good safety performance.
● Electrical system: it composed of control electrical box, internal connect line, control panel, main and vice motors, foot pedal and so on. It with the advantage like as high safety factor, overall performance is high.
● Electric controller system: E21S numerical control which is special designed for hydraulic shearing machine
