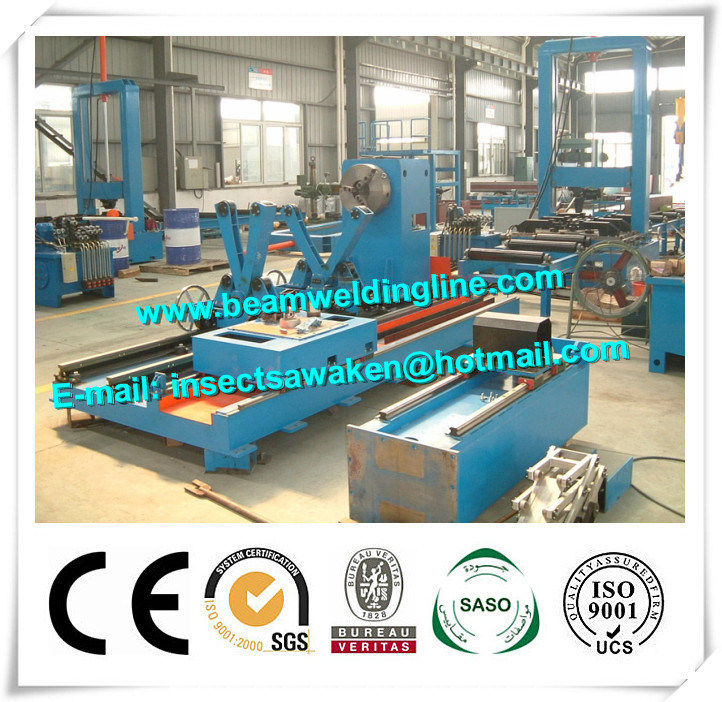

3D Pipe Cutting And Beveling Machine / CNC Plasma Cutting Machine

Product Details

Place of Origin: China

Brand Name: Friendship Machinery

Certification: CE, ISO

Model Number: GSD Series

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Packaging Details: Standard package

Delivery Time: 30 working days after down payment

Get Best Price
Highlight:

flame cutting machine

,

pipe bevelling machine

3D Pipe Cutting And Beveling Machine / CNC Plasma Cutting Machine



3D Pipe Cutting And Beveling Machine / CNC Plasma Cutting Machine





1. Technical specifications



● Cutting steel type: round or square tube

● Figures can be cut: variety of graphics by outspreading intersecting line, can be with bevel

● Control Axes: 3-4-5-6 axies, bevel cutting with six spindle and six-interlocking.

● Diameter: 60-600mm or customized

● Thickness of the pipe: flame from 6-50mm, plasma from 3-20mm

● Bevel cutting range:60 degree flame and 45 degree plasma

● Cutting way: plasma or gas

● Pipe max length: 6m

● Pipe clamping method: chuck

● Power-driven: high-precision AC servo + dedicated planetary reducer

● Control System: 6-axis controlled, with quantitative intersecting line cutting macro library





2. Pipe machine standard configurations



No.

Item

Note



1



CNC control system

(China)

Complete function, stable performance, can be slotted compensation of work-piece

2

Automatic programming nesting software

(USA)

Kerf compensation, plasma bridge, even the cut edge of the flame, sharp handling, CAD sub-layer cutting, text annotation functions

3

Driving system

(Japan)

Panasonic Servo motor, precise speed control, torque-speed characteristics hard, the principle is simple, easy to use, the price advantage

4

Reducer

(Germany)

Neguart,Compact, high reliability, high performance data structure, light weight

5

Solenoid vale

(Taiwan)

Air TAC, High temperature stability, good closure



6

Imported cable

(Germany)

Shuang Ying, long life, strong anti-jamming capability

7

Relays

(France)

Schneider, Stable performance

8

Trachea

(Korea)

SU, High pressure, long life Cold resistant and anti high temperature corrosion

9

Arc pressure increase device

(China)

Hongyuda, high control precision, stable performance, strong anti-jamming capability





3D Pipe Cutting And Beveling Machine / CNC Plasma Cutting Machine 0

CNC Plasma Pipe Profile Cutting Machine



Plasma torch power supply and supporting all famous brands, a number of national patents by the manufacturers.



Chuck



Clamping Disc Rotation



Torch Vertical Movement



Torch Horizontal Movement



Torch Right & Left Swing Movement



Torch Front & Back Slant Movement







3D Pipe Cutting And Beveling Machine / CNC Plasma Cutting Machine 1
